In this blog, we demonstrate the first backwards kernels to surpass H100s for both transformers (Flash Attention v2) and hybrid models (Mamba2), which enables training foundation models on AMD Instinct MI300X accelerators.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.

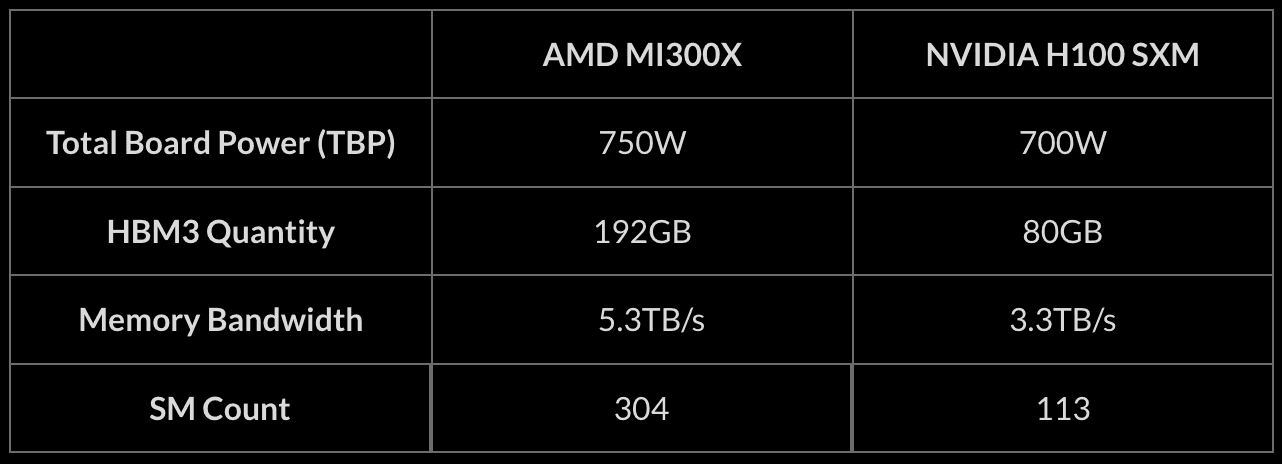

For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
As future work, we plan to extend the attention kernel and portions of the Mamba2 kernel to fp8 precision, and enable fine-grained tensor-parallel overlap within the Mamba2, Attention, and MLP blocks with communication. Both optimizations are critical to Zyphra’s training pipeline.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
As future work, we plan to extend the attention kernel and portions of the Mamba2 kernel to fp8 precision, and enable fine-grained tensor-parallel overlap within the Mamba2, Attention, and MLP blocks with communication. Both optimizations are critical to Zyphra’s training pipeline.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
As future work, we plan to extend the attention kernel and portions of the Mamba2 kernel to fp8 precision, and enable fine-grained tensor-parallel overlap within the Mamba2, Attention, and MLP blocks with communication. Both optimizations are critical to Zyphra’s training pipeline.
Zyphra would like to thank TensorWave, Cirrascale, and AMD for providing us with access to AMD Instinct MI300X GPU accelerators to carry out the optimizations in this work.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
As future work, we plan to extend the attention kernel and portions of the Mamba2 kernel to fp8 precision, and enable fine-grained tensor-parallel overlap within the Mamba2, Attention, and MLP blocks with communication. Both optimizations are critical to Zyphra’s training pipeline.
Zyphra would like to thank TensorWave, Cirrascale, and AMD for providing us with access to AMD Instinct MI300X GPU accelerators to carry out the optimizations in this work.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
As future work, we plan to extend the attention kernel and portions of the Mamba2 kernel to fp8 precision, and enable fine-grained tensor-parallel overlap within the Mamba2, Attention, and MLP blocks with communication. Both optimizations are critical to Zyphra’s training pipeline.
Zyphra would like to thank TensorWave, Cirrascale, and AMD for providing us with access to AMD Instinct MI300X GPU accelerators to carry out the optimizations in this work.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
As future work, we plan to extend the attention kernel and portions of the Mamba2 kernel to fp8 precision, and enable fine-grained tensor-parallel overlap within the Mamba2, Attention, and MLP blocks with communication. Both optimizations are critical to Zyphra’s training pipeline.
Zyphra would like to thank TensorWave, Cirrascale, and AMD for providing us with access to AMD Instinct MI300X GPU accelerators to carry out the optimizations in this work.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
As future work, we plan to extend the attention kernel and portions of the Mamba2 kernel to fp8 precision, and enable fine-grained tensor-parallel overlap within the Mamba2, Attention, and MLP blocks with communication. Both optimizations are critical to Zyphra’s training pipeline.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
As future work, we plan to extend the attention kernel and portions of the Mamba2 kernel to fp8 precision, and enable fine-grained tensor-parallel overlap within the Mamba2, Attention, and MLP blocks with communication. Both optimizations are critical to Zyphra’s training pipeline.
Zyphra would like to thank TensorWave, Cirrascale, and AMD for providing us with access to AMD Instinct MI300X GPU accelerators to carry out the optimizations in this work.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
As future work, we plan to extend the attention kernel and portions of the Mamba2 kernel to fp8 precision, and enable fine-grained tensor-parallel overlap within the Mamba2, Attention, and MLP blocks with communication. Both optimizations are critical to Zyphra’s training pipeline.
Zyphra would like to thank TensorWave, Cirrascale, and AMD for providing us with access to AMD Instinct MI300X GPU accelerators to carry out the optimizations in this work.
We present histograms depicting distribution of cluster sizes in all the datasets (see Fig. 7-11). Please, note that all the figures are in log-log scale. We see a significant drop in the number of clusters starting from the size of around 100. This drop is present both in DCLM and FineWeb-Edu2 (see Fig. 8 and 9 respectively), and most likely is explained by a combination of the deduplication strategy and quality when creating both datasets: DCLM deduplication was done individually within 10 shards, while FineWeb-Edu2 was deduplicated within every Common Crawl snapshot. We find that large clusters usually contain low quality material (repeated advertisements, license agreements templates, etc), so it’s not surprising that such documents were removed. Notably, DCLM still contained one cluster with the size close to 1 million documents, containing low quality documents seemingly coming from the advertisements (see Appendix).We find both Zyda-1and Dolma-CC contain a small amount of duplicates, which is expected, since both datasets were deduplicated globally by their authors. Remaining duplicates are likely false negatives from the initial deduplication procedure. Note, that distribution of duplicates clusters sizes of these two datasets (Fig. 10 and 11) don’t contain any sharp drops, but rather hyper exponentially decreases with cluster size.
Below is an example of the document from the largest cluster (~1M documents) of duplicates in DCLM (quality score 0.482627):
Is safe? Is scam?
Is safe for your PC?
Is safe or is it scam?
Domain is SafeSafe score: 1
The higher the number, the more dangerous the website.Any number higher than 1 means DANGER.
Positive votes:
Negative votes:
Vote Up Vote Down review
Have you had bad experience with Warn us, please!
Below one will find a few documents with different quality scores from DCLM coming from the same duplicates cluster. Quality score varies from ~0.2 to ~0.04.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Reported scores underlined.
Pass@1 scores with greedy sampling.
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
Pass@1 scores with greedy sampling. Livebench 2024-11-25.
Bold: Best score at 1.5B scale w/ greedy sampling
*reported scores
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
Evals (reported underlined). All numbers pass@1 estimated using n=16
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
As future work, we plan to extend the attention kernel and portions of the Mamba2 kernel to fp8 precision, and enable fine-grained tensor-parallel overlap within the Mamba2, Attention, and MLP blocks with communication. Both optimizations are critical to Zyphra’s training pipeline.
Zyphra would like to thank TensorWave, Cirrascale, and AMD for providing us with access to AMD Instinct MI300X GPU accelerators to carry out the optimizations in this work.
Footnote: Training on the Eurus-2-RL dataset did not match the DeepScaleR math evaluation numbers, possibly due to lower quality synthetic math questions in NuminaMath-CoT providing a mixed training signal, or the solvability filtering process with QwQ-preview reducing the difficulty of the dataset. Additionally, the relatively small percentage of code (5%) likely led to math dominating training at the expense of code performance. Training on domain specific datasets and merging resulting models seems to be a potential way to counteract this problem, as demonstrated with SFT in Light-R1.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
As future work, we plan to extend the attention kernel and portions of the Mamba2 kernel to fp8 precision, and enable fine-grained tensor-parallel overlap within the Mamba2, Attention, and MLP blocks with communication. Both optimizations are critical to Zyphra’s training pipeline.
Zyphra would like to thank TensorWave, Cirrascale, and AMD for providing us with access to AMD Instinct MI300X GPU accelerators to carry out the optimizations in this work.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
As future work, we plan to extend the attention kernel and portions of the Mamba2 kernel to fp8 precision, and enable fine-grained tensor-parallel overlap within the Mamba2, Attention, and MLP blocks with communication. Both optimizations are critical to Zyphra’s training pipeline.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
While FlashAttention2-backward is a fundamental kernel necessary for training any transformer models today, at Zyphra we also have been innovating on designing novel model architectures which can achieve both higher quality and significantly greater inference and training performance over vanilla transformers.
Specifically, we have been designing and optimizing architectures based around hybrids of transformers and state-space-models (SSMs) such as Mamba. We find that such hybrids significantly outperform transformers both in terms of quality (loss per parameter) and also inference efficiency.
However, this architecture necessitates additional effort to port and optimize Mamba-2 kernels to the AMD ecosystem. Mamba2 kernels currently exist in Triton but are optimized for NVIDIA H100 GPUs. The same hardware properties we discussed above in the Flash Attention section hold for Mamba-2 backward kernel development.
We baked in the following AMD-specific optimizations when writing the Mamba-2 backward kernel:
Similar to FA2, we achieve speedups on the Mamba2 backward kernel of 4%, 5%, and 6% for sequence lengths of 2k, 4k, and 8k, respectively on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved. With both the Mamba2 forwards and backwards and the Flash Attention 2 backwards kernel in-hand, pure-SSM and hybrid attention/SSM models are trainable on MI300X hardware, and can achieve higher FLOPs per dollar than is possible on NVIDIA H100 systems.
As future work, we plan to extend the attention kernel and portions of the Mamba2 kernel to fp8 precision, and enable fine-grained tensor-parallel overlap within the Mamba2, Attention, and MLP blocks with communication. Both optimizations are critical to Zyphra’s training pipeline.
On paper, the AMD Instinct MI300X GPU accelerators contain some of the best hardware specifications on the market. The key hardware specs where the MI300X surpasses its main competitor, the NVIDIA H100 GPU, are High Bandwidth Memory (HBM) capacity and bandwidth.
The MI300X also has more compute hardware at its disposal, with a significantly greater number of streaming multiprocessors (SMs) than the H100. While this leads to incredibly high theoretical BFLOAT16 throughput, there are some caveats in practice that we discuss below.
For exact comparisons, see the table below:
Despite these impressive specs, however, the Nvidia H100/H200 remains widely adopted for large-scale pretraining runs (except Google and Apple, who use TPUs).
This is primarily because, while the MI300X hardware is theoretically very powerful, actually materializing that performance in practice needs additional work due to the nascency of the surrounding software stack compared to NVIDIA’s CUDA ecosystem.
The need for any potential MI300X user is to pull this theoretical performance out of the underlying hardware, since many of the kernels inherent to the modern AI ecosystem were built and optimized with implicit (or explicit) assumptions around NVIDIA hardware.
What this means in practice is that many kernels for core operations required in pretraining either do not exist, or are poorly optimized compared to their H100 counterparts, and this negates the fundamental performance advantages of the MI300x hardware.
While AMDs ROCm software stack provides HIPification tools which enable a degree of portability from CUDA to HIP, actually matching or exceeding the performance of a CUDA-optimized kernel in HIP requires significant additional and specialized work.
Kernels are split into the forward pass and the backward pass. The forward pass is significantly simpler than backward, which is partially due to activation recomputation. Many AMD kernels support inference but may lack optimized backward passes needed for training.
For instance, the ROCm port of Flash Attention v2 has a highly optimized implementation of the forward pass that slightly beats the NVIDIA H100 in throughput, but the backwards pass still needs more optimization.
These three properties:
have led to the “train on H100s and infer on MI300X” strategy that many organizations have started to take today.
At Zyphra, we want to push the boundaries of hardware efficiency so that we can continue training frontier foundation models such as our Zamba2 series of models at a lower cost than our competitors. This is where AMD solutions come into play.
Therefore, we have been working over the last few months to write and optimize the component backwards kernels that are necessary for our hybrid models (Mamba2 and Flash Attention v2).
To discuss the Flash Attention v2 (FA2) kernel writing process we need to discuss the hardware properties of MI300X and how they affect FA2.
In addition to the full restructuring, we baked in the following AMD-specific optimizations when writing the FA2 backward kernel:
The result of this optimization work is that we achieved speedups of 1%, 2%, and 4% for sequence lengths of 2k, 4k, and 8k, respectively for the FA2 backward kernel on MI300X compared to the H100. Cache thrashing, data movement cost, and SM utilization are all significantly improved compared to the initial MI300X port baseline during the attention backward pass when investigated via the ROCm profiling suite. With our attention backwards kernel in-hand, attention-based models such as dense/MoE transformers are trainable efficiently on MI300X hardware and can achieve high MFU.
